SharePoint Online Connector

Configuring SearchBlox

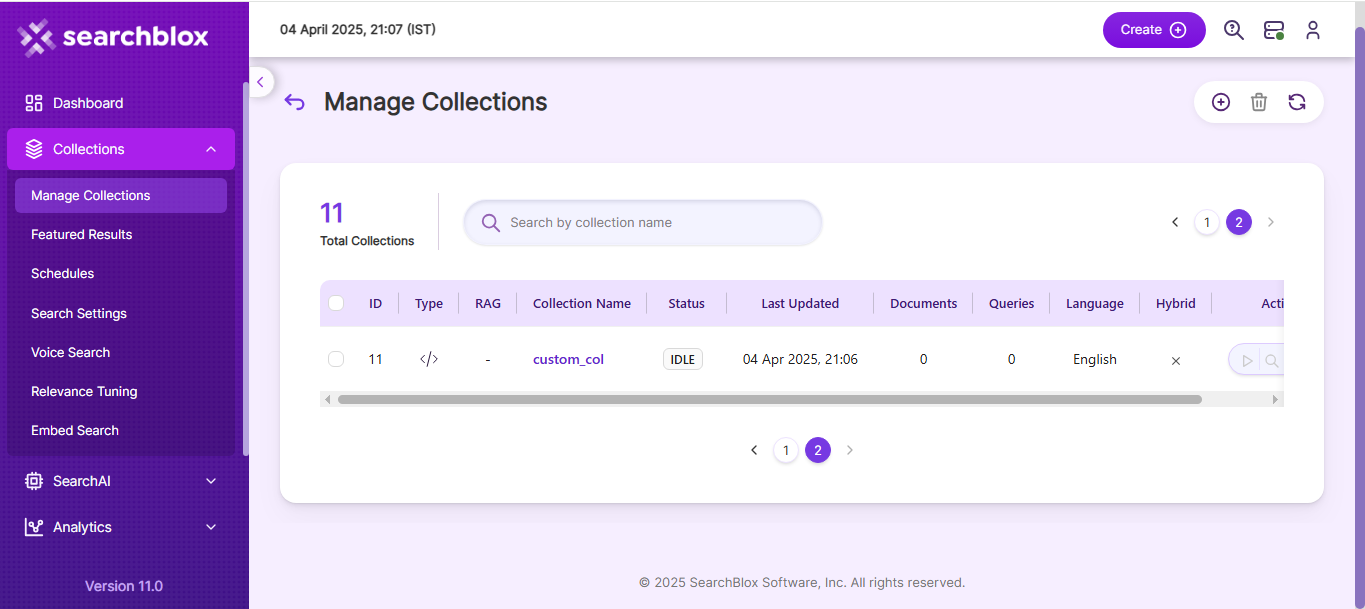

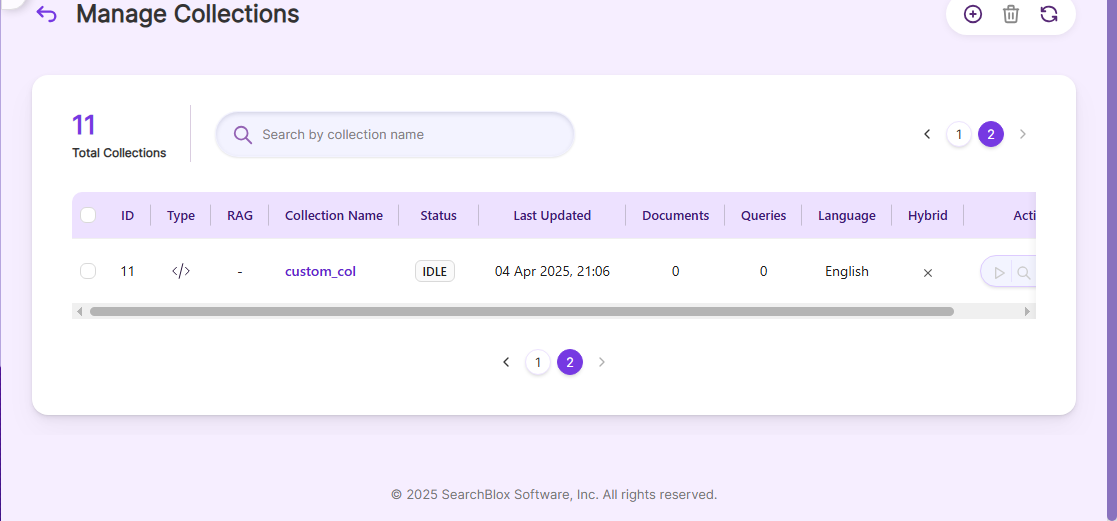

Before using the SharePoint Online Connector, install SearchBlox successfully, then create a Custom Collection.

Configuring SharePoint Online Connector

Prerequisites

  • All the files related to the connector should be available in the same folder i.e., all files should be extracted into the same folder.
  • Create a data folder on your drive where the files would be temporarily stored and mention in yml files.

Please contact support@searchblox.com to request the download link for SearchBlox SharePoint Online connector.

Steps to Configure and Run SharePoint Online Connector

In Windows, the files related to connector can be installed in the C:\ drive in Windows

  • Download the SearchBlox Sharepoint Online connector. Extract the downloaded zip to a folder.
  • Unzip the archive under C:\
  • Configure the sharepoint.yml file which includes Sharepoint properties and SearchBlox properties as listed below:

username

SharePoint User Name

password

Password

data-directory

Data Folder where the data needs to be stored. Make sure it has write permission.

api-key

SearchBlox API Key

colname

The name of the custom collection in SearchBlox.

url

SearchBlox URL

domain

SharePoint domain URL

site-url

SharePoint site url to be indexed

root-folder

SharePoint root folder of specified site

include-formats

File formats to include.

exclude-folders

Folders to exclude in Alfresco.

max-folder-size

Maximum size of static folder after which it should be sweeped in MB.

servlet url & delete-api-url:

Make sure that the port number is right. If your SearchBlox runs in 8080 port the URLs should be right.

log-file-maxSize, log-file-maxBackups, log-file-maxAge

specified the size, backup and age limit for log files to be deleted

  • The content details of sharepoint.yml are provided below:
#SearchBlox API Key
api-key: 930B1FDD47479694D9B197615FC779E0
#The name of the collection
colname: sharepoint2
username: test@site.onmicrosoft.com
#The name of the collection
password: test123
#SearchBlox URL
url: http://localhost:8080/searchblox/rest/v2/api/
#Data Folder where the data needs to be stored Make sure it has write permission
data-directory: C:/sharepointconnector/data
#megabytes after which new file is created
log-file-maxSize: 10
#number of backups after which log file should be deleted
log-file-maxBackups: 10
#Number of days after which log files should be deleted
log-file-maxAge: 30
#The Excluded folders wont be indexed. Note:no trailing or leading slashes Eg: test/searchblox
exclude-folders: [/FormServerTemplates,/Style Library,/_catalogs,/SiteAssets]
#Only Inlcude formats will be indexed
include-formats: [.pdf,.docx,.aspx,.html]
#sharepoint domain
domain: https://searchblox.sharepoint.com
#sharepoint site url to be indexed
site-url:
#sharepoint root folder of specified site
root-folder:
#searchblox servlet url for auto delete functionality
servlet-url: http://localhost:8081/searchblox/servlet/SearchServlet
#searchblox delete api url for auto delete functionality
delete-api-url: http://localhost:8081/searchblox/api/rest/docdelete
#maximum size of static folder aftre which it should be sweeped in MB
max-folder-size: 2
  • Please make sure to give the API key, collection name, data folder path and sharepoint domain and other related properties.
  • Start running the sharepoint_online.exe file for Windows
