The Knowledge Graph Wiki Plugin is a self-contained front-end plugin that embeds into any
SearchBlox deployment. It provides a rich UI for exploring a SearchBlox Knowledge Graph —
browsing entities, reading documents, navigating relationships and topics, and visualising the
graph with an interactive D3 force-directed canvas.
The plugin ships as a static build (dist/) and is dropped into a web server as a folder (e.g.
/plugins/kgwiki1/). All configuration is done via hidden fields in index.html —
no rebuild needed for each deployment.

Deployment Configuration

Configuration is read from hidden elements in index.html at
runtime.

Example index.html snippet:

<input type="hidden" id="sb-domain" value="https://search.company.com" />
<input type="hidden" id="sb-collection" value="3" />
<input type="hidden" id="sb-collection-name" value="Product Docs" />

When sb-domain is empty, all API calls go to the current origin
(window.location.origin), so the plugin and SearchBlox can be co-hosted without any
extra configuration.

Routing & Navigation

The plugin uses React Router v6 BrowserRouter with an auto-detected basename, so it
works regardless of the folder name or nesting depth under the web server root.

Auto-basename detection: On startup, detectBasename() inspects
window.location.pathname and strips known route segments (entity, topic,
document, browse, graph, search) to infer the deployment prefix automatically.

Route table:

All pages are lazy-loaded (code-split) with a spinner fallback.

Sidebar Navigation
The sidebar has three groups:

• Discover: Home, Search
• Browse: Entities, Topics, Relationships
• Visualize: Graph Explorer
  Every navigation link automatically appends the active collection (?col=&cname=)
  so the selected collection is never lost when switching pages.
  .htaccess (Apache)
  A public/.htaccess file is included with mod_rewrite rules to serve index.html for all
  non-file paths, enabling full client-side routing on Apache servers.

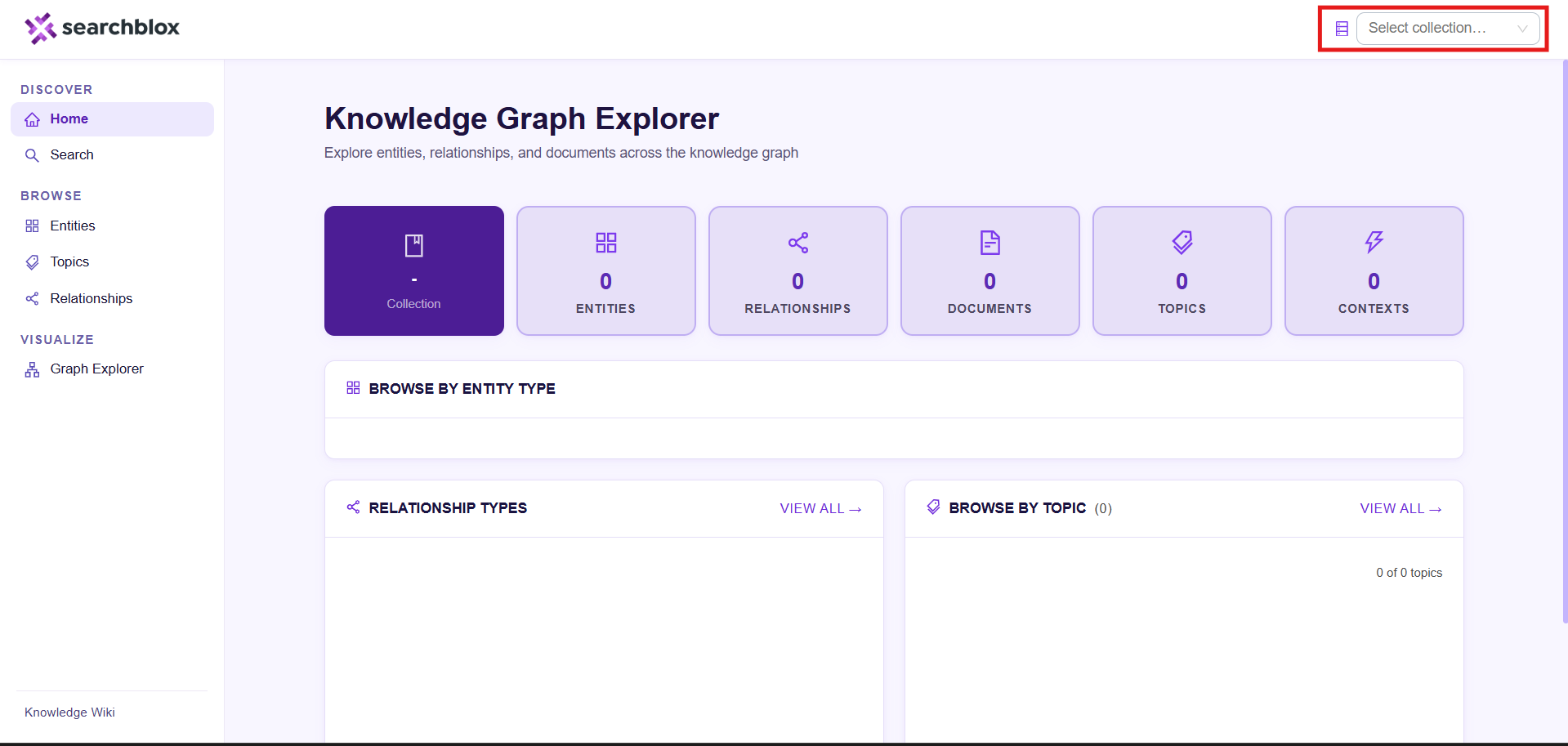

Collection Management

The collection selector appears in the top header on every page.

How it works

1. Dropdown is populated via GET /rest/v2/api/collections (fetched once,
   cached 10 min).
2. On selection, the active collection is stored in two places simultaneously:

• Module-level store (collectionStore.ts) — read by API functions which
  cannot access React context.
• React context (CollectionContext) — read by UI components.

3. All cached query data is immediately invalidated
   (queryClient.invalidateQueries()), causing every visible section to re-fetch for
   the new collection.
4. col and cname are written into the URL query string so the selection survives page
   refreshes and can be bookmarked/shared.

Priority order for initial collection

1. URL params ?col=&cname= (survives refresh / shared links)
2. #sb-collection / #sb-collection-name hidden inputs (deployment default)
3. Empty (no collection, dash shown on Home)
   Clear
   The dropdown has an × clear button. Clearing removes col/cname from the URL and sends all
   subsequent API calls without a collection filter.

Pages

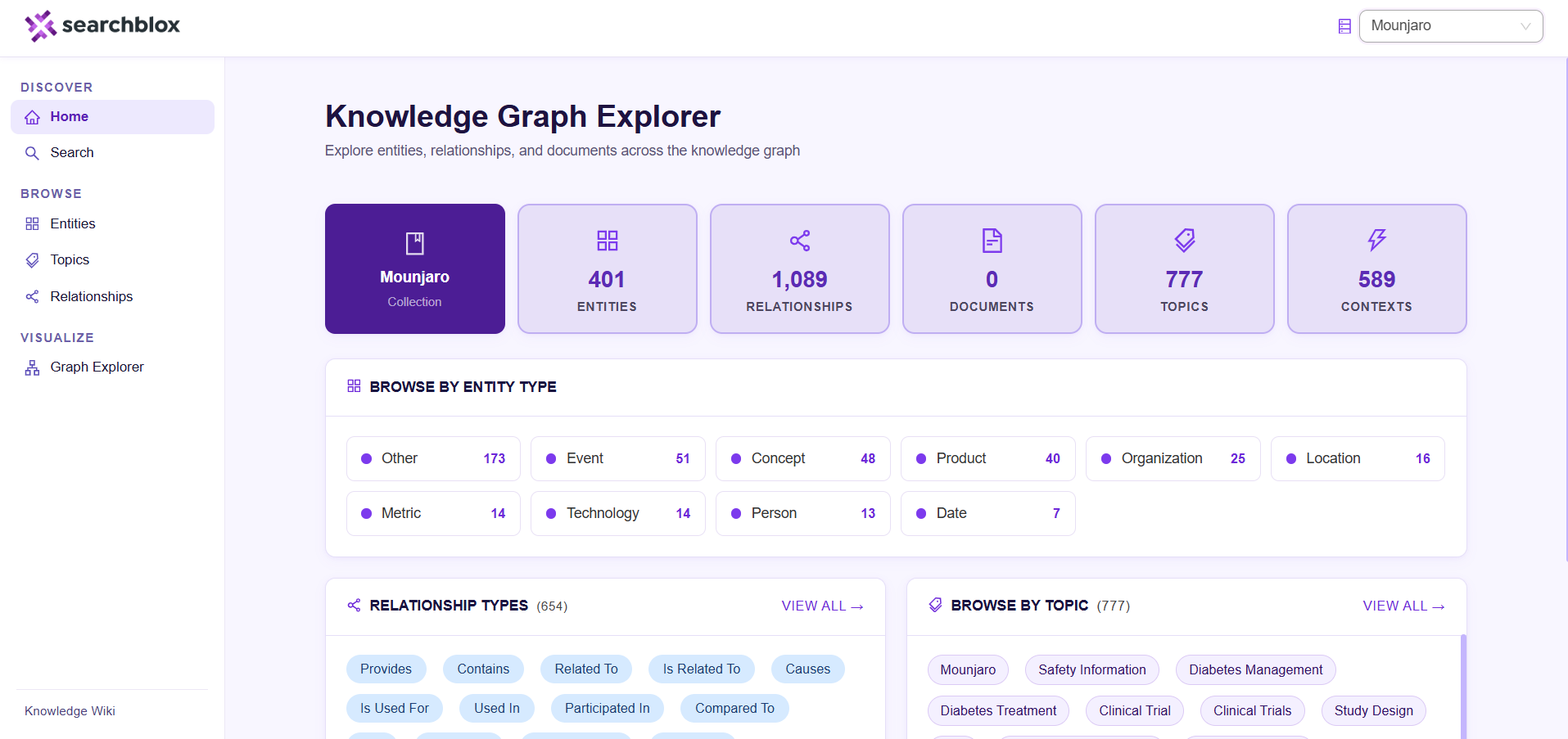

Home Page

Route: /
The landing page provides a dashboard overview of the knowledge graph.

Stats are fetched from GET /rest/v1/knowledge-graph/stats/.

Browse by Entity Type

A grid of clickable tiles, one per entity type (e.g. Person, Organization, Technology). Each tile
shows the type name and document count. Clicking navigates to the Browse → Entities tab
pre-filtered to that type.

Data from GET /rest/v1/knowledge-graph/entity-types.

Relationship Types

A tag cloud of all relationship predicate types with their triple counts (e.g. "Used For (142)").
Renders in batches of 20 with a Show more button. Predicate names are formatted via a
human-friendly label lookup (e.g. is_part_of → "Is Part Of").

Data from KGFacets.predicates via GET /rest/v1/knowledge-graph/facets.

Browse by Topic

A paginated tag cloud of knowledge graph topics. Loads 20 at a time from GET
/rest/v1/knowledge-graph/topics. Each topic tag is clickable and navigates to the Topic
detail page. Shows "X of Y topics" progress.

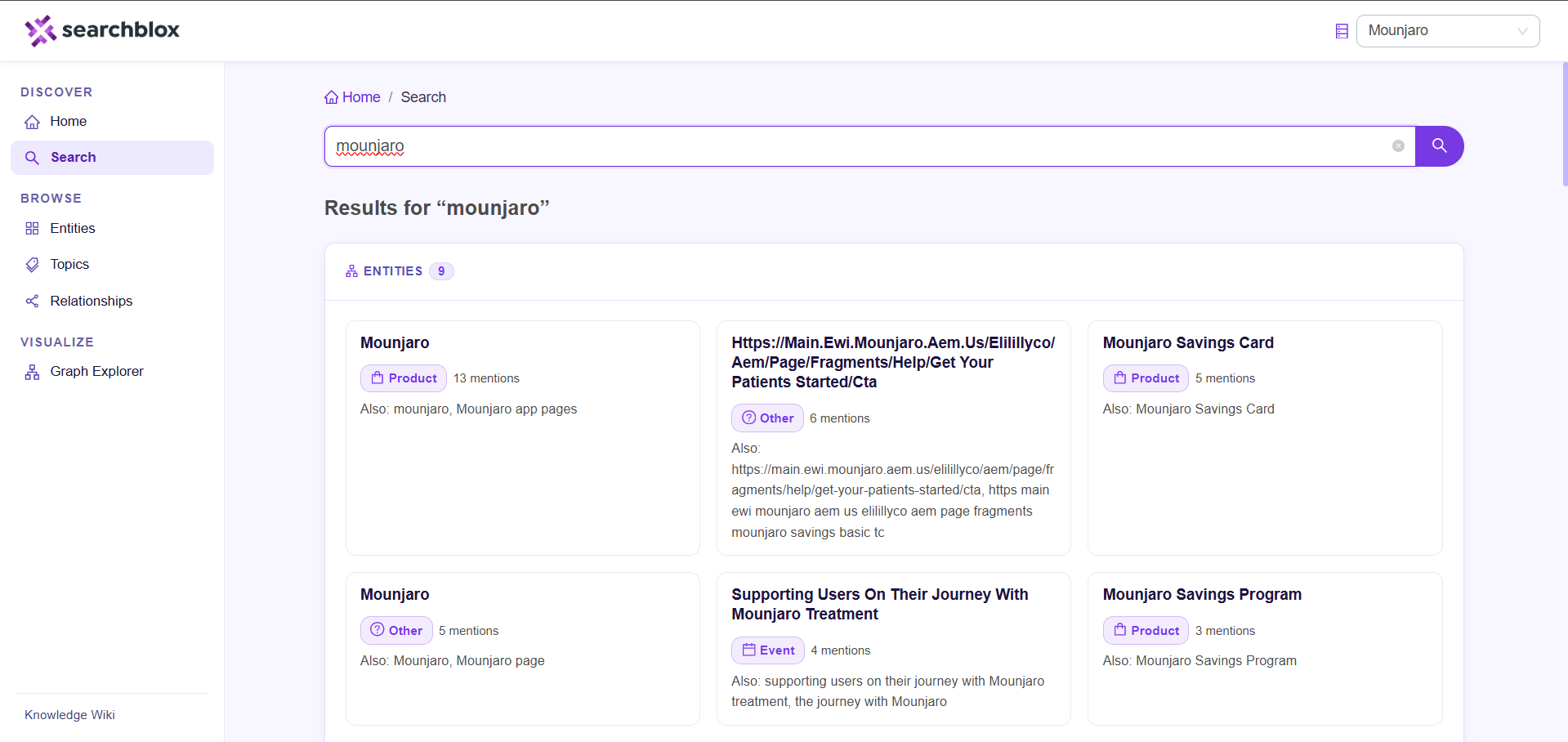

Search Page

Route: /search?q=
Performs a simultaneous search across entities and documents.

Search Bar

A large search input at the top of the page. Submitting a query updates the URL (?q=)
and triggers both search APIs.

Entities Section

• Calls GET
  /rest/v1/knowledge-graph/entities/search?query=&limit=9
• Also calls GET
  /rest/v1/knowledge-graph/entities/similar?entity=&limit=6 and
  merges (deduped by id)
• Rendered as an EntityGrid

Documents Section (Hybrid Search)

• Calls GET
  /rest/v2/api/hybrid-search?query=&page=

  &pagesize=&col=

• Initial load: page=1, pagesize=10
• Load more: page=2+, pagesize=20
• Results accumulate — clicking "Load more" appends the next page rather than replacing
• Each result shows: title (external link), document type badge, source URL, highlighted
  snippet (with tags rendered)
• Shows "Showing X of Y" counter and "All N results shown" when exhausted

  Related Topics Section

  Automatically derived from entity names and document topics in the current results, deduped
  and limited to 8. Each tag navigates to the Topic page.

Browse Page

Route: /browse?tab=<entities|topics|relationships>

A tabbed browser for exploring the full knowledge graph.

All active filters are persisted in the URL (tab, type, query, page, and collection), so the exact
view can be bookmarked or refreshed.

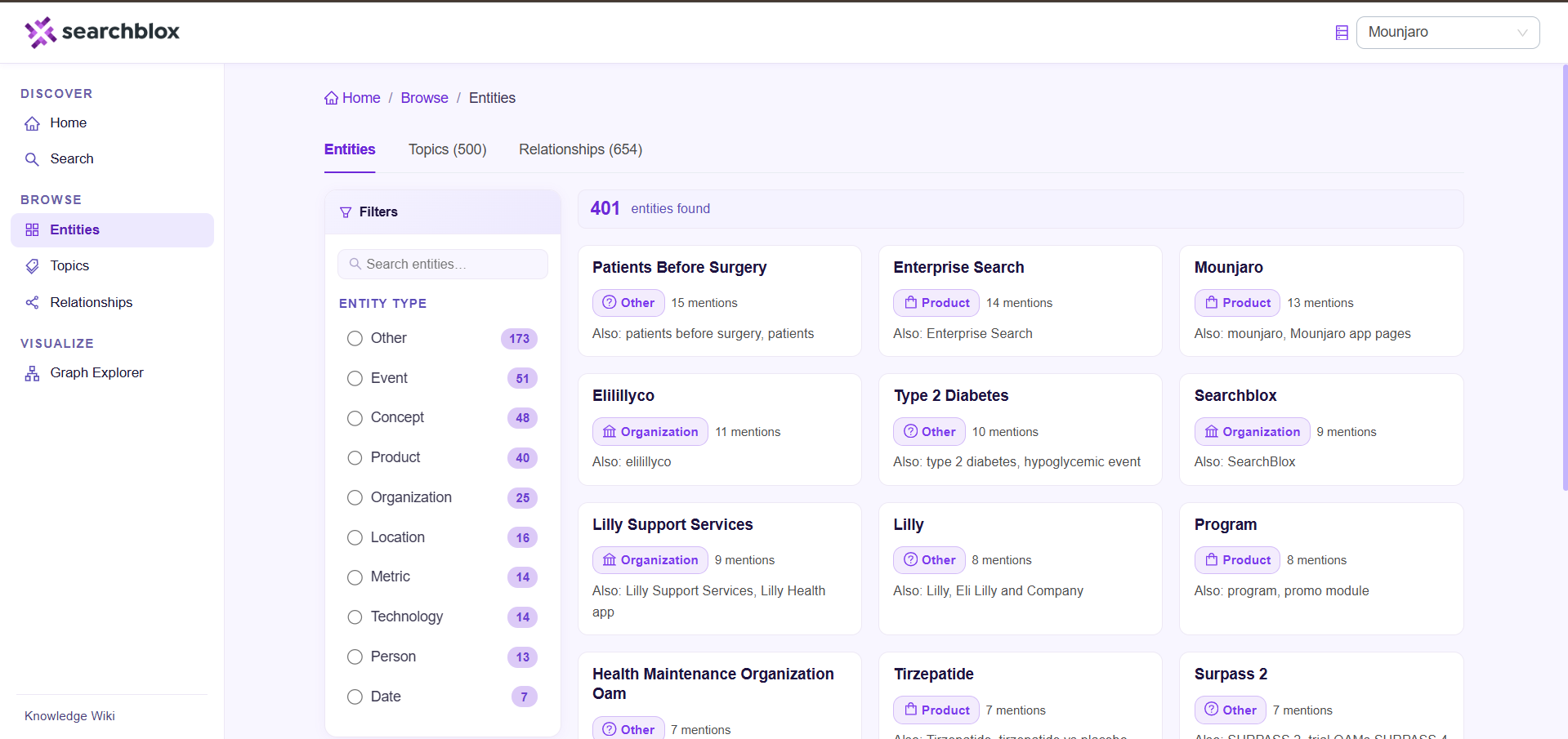

Entities Tab

• Filter sidebar (left, hidden when no entity types exist): text search input + Entity Type
  radio filter. Selecting a type filters the grid.
• Entity grid (main area): EntityGrid with server-side pagination (15 per page).
• Data from GET
  /rest/v1/knowledge-graph/browse?type=&query=&offset=&
  limit=15

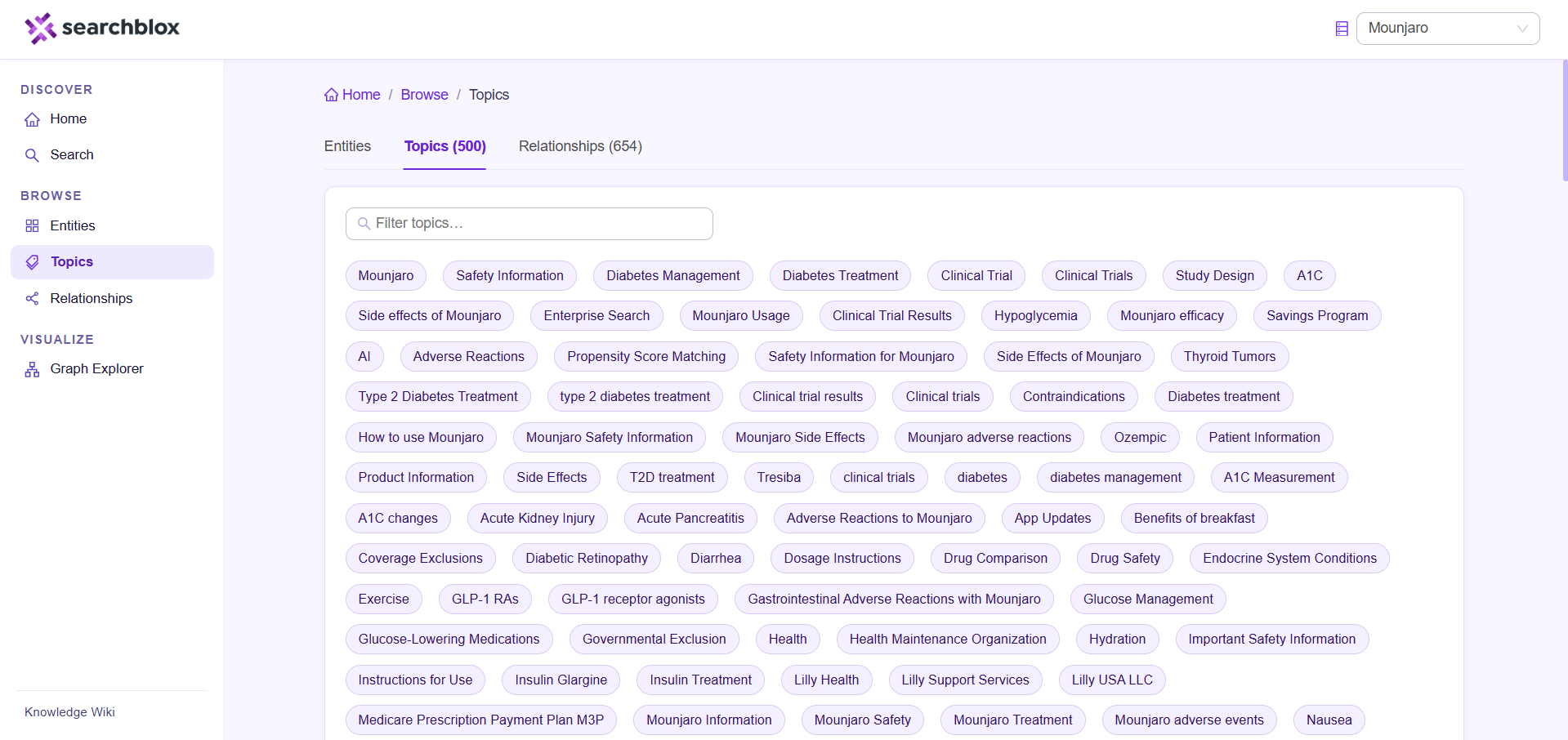

Topics Tab

• Full-width card listing all topics from the knowledge graph as clickable tags.
• Client-side filter input shown only when topics exist (hidden if empty).
• Clicking a tag navigates to the Topic detail page.
• When no topics are found, a centered empty state ("No topics found.") is shown. When
  the filter matches nothing, "No topics match your filter." is shown.
• Tab label shows the count of loaded topics.

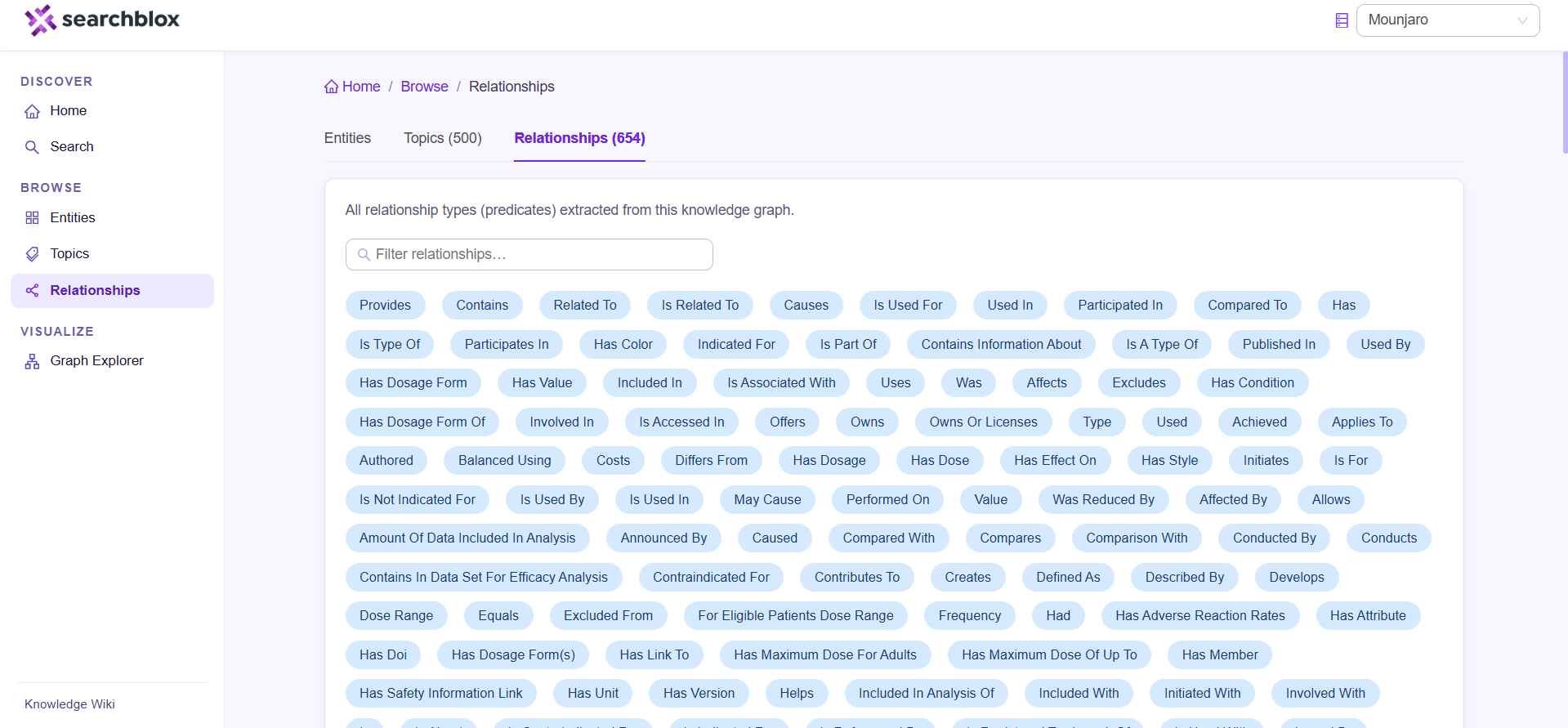

Relationships Tab

• Full-width card listing all relationship predicate types as tags with counts.
• Client-side filter input shown only when relationships exist.
• Human-friendly label display (e.g. developed_by → "Developed By").
• Empty states follow the same pattern as Topics.

Entity Page

Route: /entity/:entityId
Detailed view for a single knowledge graph entity

Header Card

Neighborhood Graph (right column)

A small interactive D3 graph showing the entity and its direct (1-hop) connections. Up to 15
neighbours. Clicking any node navigates to that entity's page. A "Full Graph" button opens the
entity's traversal in the Graph Explorer.

Data from GET
/rest/v1/knowledge-graph/traverse?entityId=&depth=1&limit=15.

Relationships Card

Two sub-tabs:
By Predicate — Triples are grouped by relationship type and direction:

• → Outgoing: This entity is the subject (e.g. "Company → uses → Technology")
• ← Incoming: This entity is the object (e.g. "Person → works for → This Company")
• Each group is collapsible (shows 5, toggle to show all)
• Related entity names link to their entity pages

All Triples — Ant Design table with columns: Subject / Predicate / Object / Confidence. Subject
and Object are links. Paginated (10 per page).
Data from GET /rest/v1/knowledge-graph/entities//triples?limit=50.

Related Entities

An EntityGrid of similar/related entities. Data from GET
/rest/v1/knowledge-graph/entities//related?limit=20.

Source Documents

List of documents that mention this entity. Shows document count in the card title. Each
document entry shows type, complexity, mention count, triple count, and up to 6 topics.

Data from GET /rest/v1/knowledge-graph/entities//documents?limit=20.

Document Page

Route: /document/:documentId

Rich view for a single document's knowledge graph context.

Header

Document title, type badge, complexity badge (colour-coded: Beginner=green,
Intermediate=blue, Advanced=orange, Expert=red), and a "View Source" button that opens the
original document URL in a new tab.

Summaries

Side-by-side panels:

• Executive Summary — high-level overview for non-technical readers
• Technical Summary — implementation/technical details

Key Takeaways & Action Items

Bulleted lists with distinct icons (✓ for takeaways, → for action items).

Metadata

Categorised tag rows: | Row | Content | |---|---| | Topics | Knowledge graph topics (clickable →
Topic page) | | Audience | Target personas (e.g. "Developer", "Manager") | | Roles | Job roles | |
Use Cases | Business use cases | | Industries | Industry verticals | | Prerequisites | Required
background knowledge |

Learning Path

A horizontal stepper showing where this document sits in a recommended learning sequence.
Step titles are clickable links to the corresponding document pages. Only shown when the path
has more than one step.

Topic Page

Route: /topic/:topicName
Aggregated view of all content related to a topic.

• Documents — DocumentList of all documents tagged with the topic (via
  browseDocuments({ topic, limit: 20 })).
• Related Entities — EntityGrid of entities associated with the topic (GET
  /rest/v1/knowledge-graph/topics//entities).
• Related Topics — Computed from co-occurring topics across the topic's documents (top
  12 by frequency). Each tag links to its own topic page.

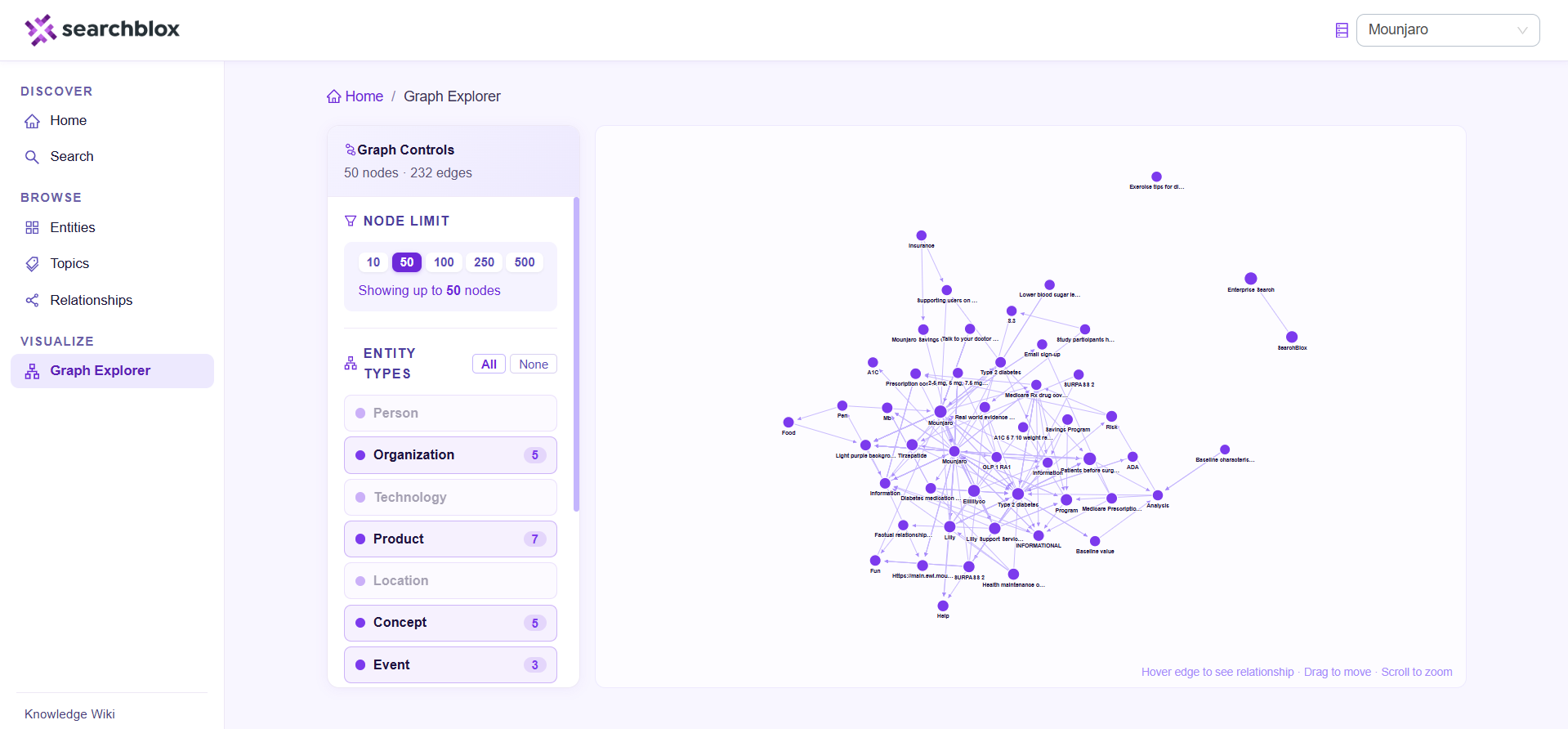

Graph Page

Route: /graph
A full-screen, interactive force-directed graph visualisation of the entire knowledge graph (or a
filtered subset).

Left Control Panel

• Node Limit: Buttons for 10 / 50 / 100 / 250 / 500 nodes (default 50). Changes trigger a
  re-fetch.
• Entity Types filter: Checkbox list. "All" / "None" quick-toggle buttons. Only types
  present in the current data are shown.
• Stats: Live node and edge count for the current view.
• Interaction hints: Keyboard/mouse shortcut reference.

Graph Canvas

D3 force-directed simulation with:

• Node size scaled logarithmically by mention count (radius 8–20 px)
• Forces: Link distance 140, repulsion -400, centering, collision avoidance
• Zoom: Mouse wheel / pinch, range 0.05×–4×, auto-fits on load
• Edge labels: Hidden by default, revealed on hover
• Arrowheads indicate direction of relationship

Interactions

Node Selection Overlay

Floating panel (top-right of canvas) showing the selected node's details with two buttons:

• "View Entity Page" — navigates to /entity/
• "Expand Connections" — lazily fetches the node's 1-hop traversal (depth=1,
  limit=10) and merges new nodes and links into the graph without a full reload

  Entity Type Filtering

  Toggling an entity type hides/shows its nodes and also removes any edges where either
  endpoint is hidden.

API Integration

Base URLs

When sb-domain is empty, sbDomain resolves to window.location.origin.

Knowledge Graph Endpoints

Response Shape Normalisation

All API functions defensively handle multiple response shapes to work with different SearchBlox,
Solr, and Elasticsearch backend versions:

• Arrays may be bare ([...]) or wrapped ({ results: [...] }, { docs: [...]
  }, { items: [...] }, etc.)
• Field names may be camelCase or snake_case (e.g. entityId / entity_id,
  mentionCount / mention_count)
• Hybrid search handles 8 distinct response shapes including Solr, Elasticsearch, and
  SearchBlox native formats

Caching (TanStack React Query)

All caches are busted immediately when the active collection changes.

Components Reference

Layout

Graph

Entity

Document

Search

Shared

Error & Empty States

LoadingState shows one of three states:

URL Parameter Reference

The plugin stores all significant UI state in URL parameters for shareability and
refresh-persistence.

Disabled / Hidden Features

The following features are fully implemented in code but hidden from the UI (commented out).
They can be re-enabled by uncommenting the relevant lines.

Predicate Label Dictionary

Human-readable labels are applied to all relationship predicate names. Known mappings
include:

Unknown predicates are auto-formatted: underscores replaced with spaces, each word
capitalised.

Build & Development

# Install dependencies
npm install
# Start dev server (https://localhost:9005, with Vite proxy to SearchBlox backend)
npm run dev
# Production build
npm run build
# Analyse bundle size
npm run analyze

Vite Dev Proxy

The Vite dev server proxies /rest and /searchblox paths to the SearchBlox backend
configured in index.html (sb-domain), so API calls work in development without CORS
issues.

Build Output (dist/)

Hash-based filenames enable reliable cache-busting on each deployment.
